AIRBLAST MACHINES FOR GLASS PROCESSING

Machines designed for sandblasting glass plates in a vertical position. Suitable for both large and small production and mass production. It is possible to operate both manually and automatically.

The cabin is provided with two side openings, protected by very thick dust-proof brushes, for the introduction of the slabs and is open at the top to work slabs larger than the useful cabin entrance.

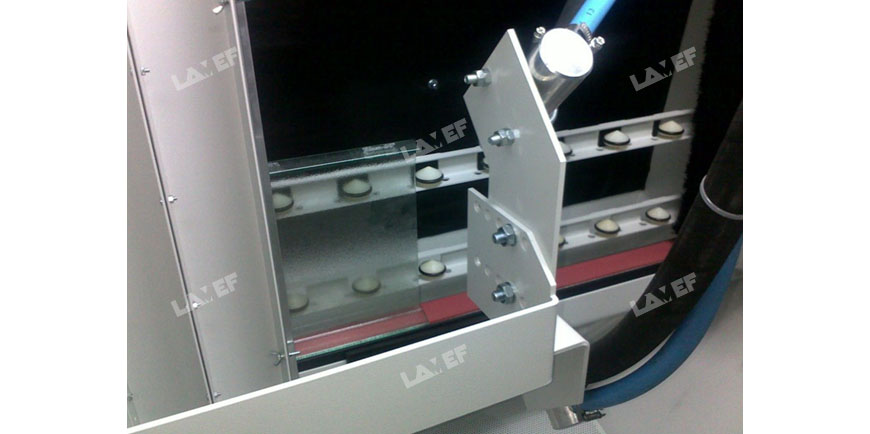

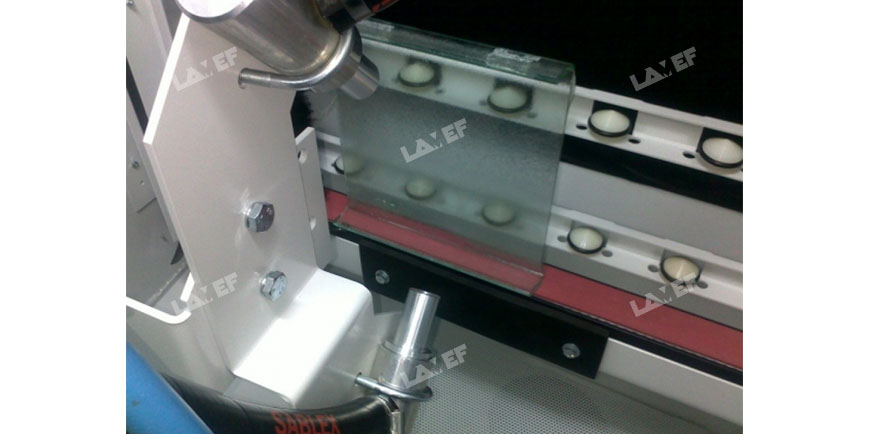

The slab is supported by espaliers equipped with sliding rollers and an automatic conveyor belt that allows the handling and therefore the introduction of the slab into the cabin for its processing.

A filtering system with self-cleaning cartridges guarantees the recovery and automatic recycling of the abrasive and the separation of waste dust.

It is possible to work with 1 or 2 sandblasting guns and this determines the power of the machine and therefore its speed of sandblasting.

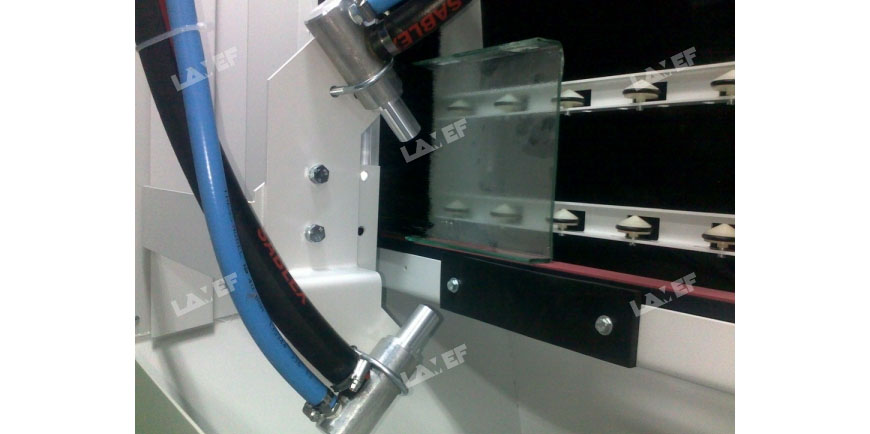

The guns are mounted on a motorized reciprocator which moves them from the bottom upwards and vice versa in the area to be blasted.
The working area is previously programmed by the operator from the control panel.

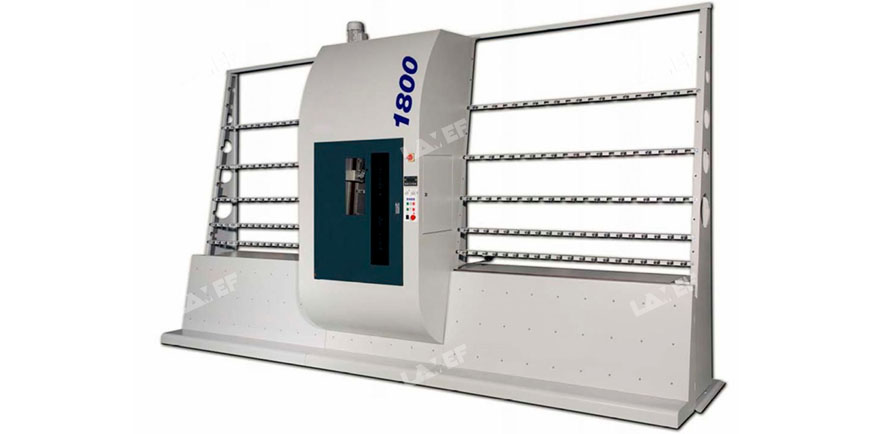

Model SV 6


Measurements and weight: 5200 x 1350 x 3100 mm - 1200 kg - Espaliers: 2000
Useful internal surface: 950 x 650 x 1800 mm
Work speed: 1 m² / 2 minutes - 2 guns
Minimum piece dimensions: 250 x 250 mm
Glass thickness: 3/100 mm
Required air quantity: 2000 l / minute - 2 guns

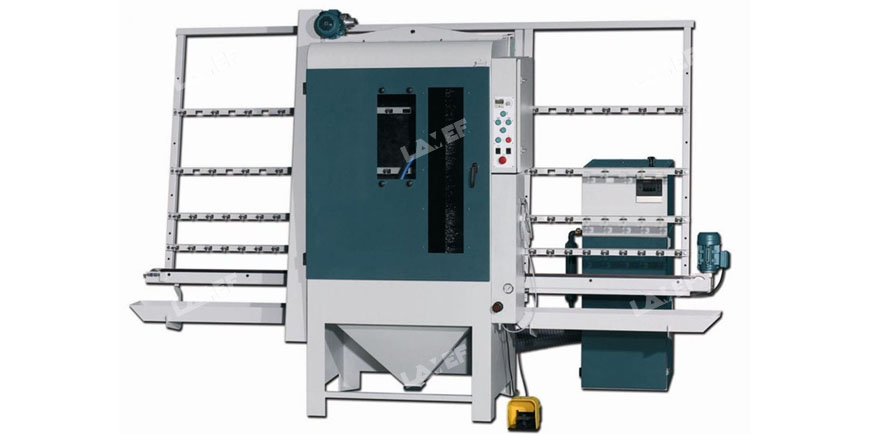

Model SV 3000


Measurements and weight: 3200/5200 x 800 x 2500 mm - 800 kg - Espaliers: 1000/2000 mm
Useful internal surface: 950 x 650 x 1200 mm
Working speed: 1 m² / 2 minutes - 2 guns
Minimum piece dimensions: 250 x 250 mm
Glass thickness: 3/100 mm
Required air quantity: 2000 l / minute - 2 guns
