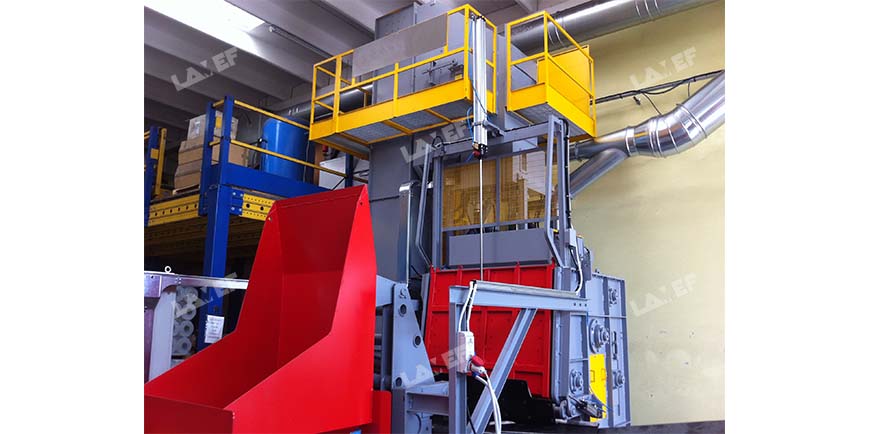

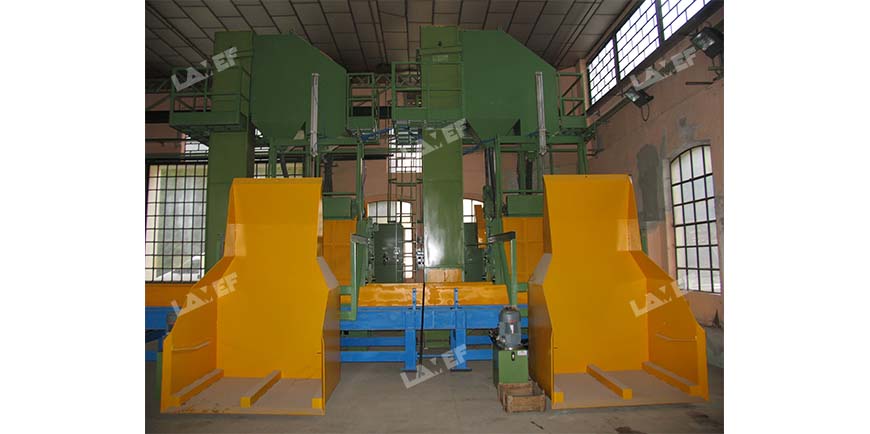

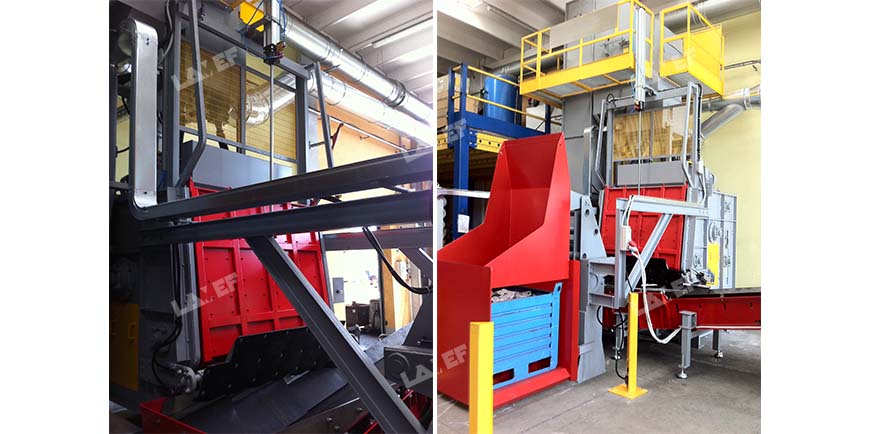

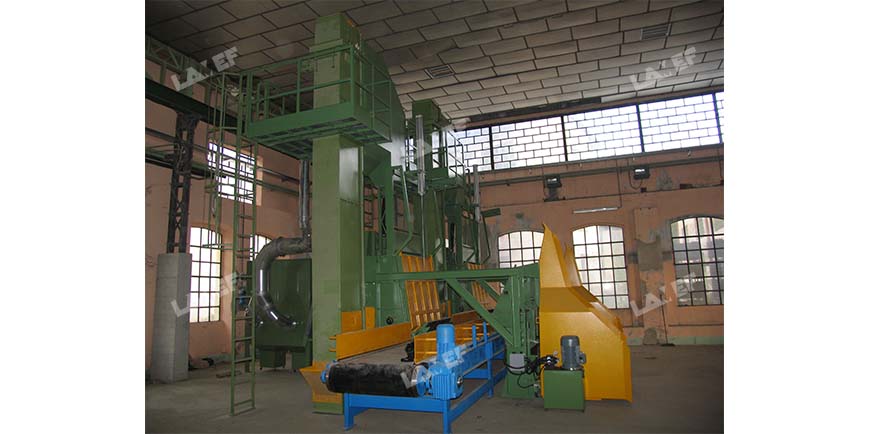

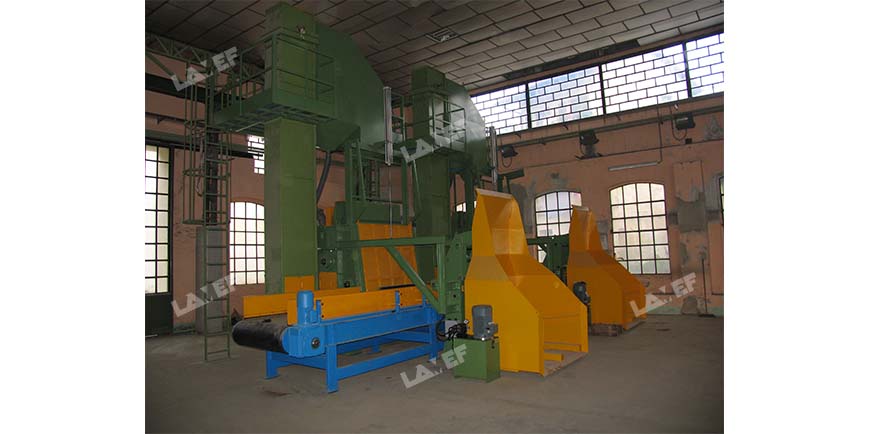

The Tumble Belt Blasting Machines are used for the treatment of pieces of small and medium-sized pieces in steel, cast iron, brass and aluminum.

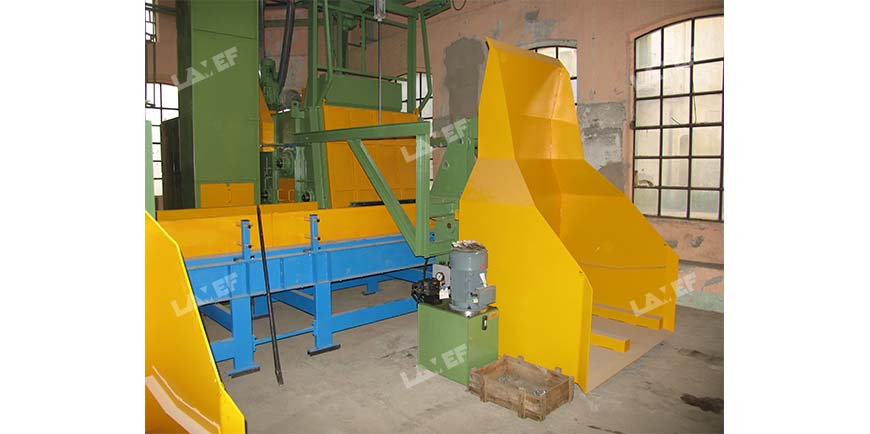

The pieces are loaded in bulk manually or automatically with a hydraulic bucket.
The carpet, in rubber or steel, shuffles the pieces inside, exposing all the surfaces to the effect of the grit projected by the turbines placed above.
Our range of standard machines goes from 40 m3to 1000 m3 of useful volume and a flow rate in relation to the model from 40 kg up to 3000 kg.
The rubber mat finds application in the blasting of delicate or small and medium-sized pieces; the steel one is used for medium and large dimensions.
They are successfully used in foundries, heat treatments, painting, molding, forging and deburring.
The system is complete with a self-cleaning filtering device with cartridges or sleeves in relation to the different needs.
AccessoriesES
- Loading / unloading device
- Filter with fire protection device
- Soundproofing
- Inverters for turbine speed regulation
- Magnetic separator
- Vibrating screen
